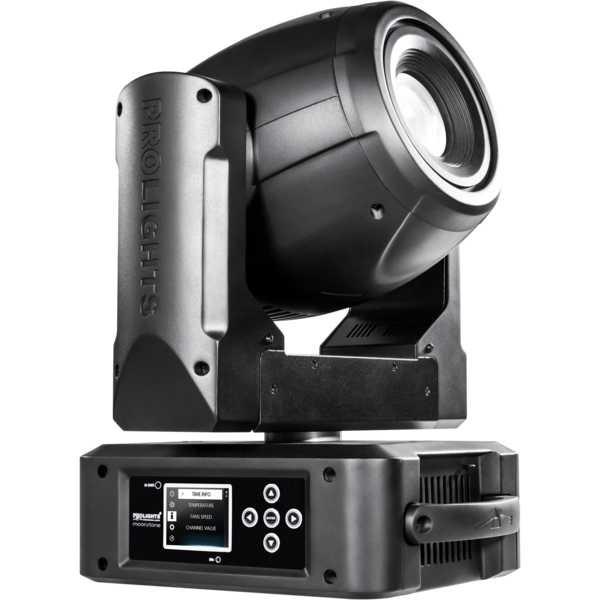

PROLIGHTS MOONSTONEBK Spot moving head

MOONSTONE is a Spot moving head featuring a lightweight and compact body, equipped with a 180W White LED Source which allows a superior light output and performances comparing with traditional fixtures based on 575W discharge lamp. Bright, lightweight and noiseless, this unit has been designed to generate a sharp and high-density beam, ideal to fit applications in events, concerts, congress and for every installation. MOONSTONE offers an advanced effect generation through 8 colors, 7 rotating gobos, 7 static gobos, electronic focus, rotating 3f and 8f circular prism, frost, iris and shutter. Extreme speed and precision of movements are guaranteed by the ultra-lightweight chassis and by usage of fast motors, allowing MOONSTONE to be as fast as the moving mirror of scanners in its movements. SHINE series electronic design offers advanced features as colorful high-definition LCD display with multilanguage Menu, autofocus function, RDM, hibernation, color bounce, advanced diagnostic and temperature managment system. MOONSTONE is the ideal tool for all rental and system integration companies  who may handle a compact fixture with unprecedent performance and efficiency, reducing the management costs in terms of consumption, logistics, stocking and lamp replacement.

Light source and optics

• 1 x 180W high-power white LED
• Color temperature: 7000K
• Lumen: 5000 lm
• Brightness: 5340 lux @5mt
• Projection angle: 12°
• High efficiency optical system
• High definition anti-reflection lenses with achromatic coating
• Focus: motorized focusing, from 2 m to infinity
• Autofocus function via DMX
• LED average life span: >30’000 h

Dimmer / shutter / strobe

• 0-100% linear dimmer
• Independent shutter and fading effects with adjustable speed
• Strobe: Electronic 1-20 flash/s (with random strobe effect)

Color system

• Color wheel with 8 dichroic filters + open, linear-step-less selection (1,98 rps)
• Bidirectional rainbow effect
• Color bounce effect for sequential colors on the wheel


Effects

• 1st Gobo wheel: 7 rotating Gobos, 2 of which dichroic (1,22rps)
• 2nd Gobo wheel: 7 metal fixed Gobos (1,22 rps)
• 49 possible overlapping gobos combinations
• Gobos rotation in both CW and CCW direction (2,74 rps)
• «Gobo-shake» effect
• “Gobo-scroll” effect with variable speed
• Gobochange with synchronized blackout
• Easy access to gobo wheels for replacement
• Frost filter on wheel
• 3-facet and 8f circular prism effect, bi-directional rotation with variable speed
• 5-100% motorized linear iris
• Auto & SoundActive show, with editable scenes from Menu with Master/Slave function


Electronics

• Color LCD display with high resolution for simplified access to control menu, configuration and DMX addressing
• Menu language: English, French, Spanish
• 4 DMX configurations available: 14/16/21/24 channels for full flexibility and control
• 2,4GHz WDMX receiver by Wireless Solutions (optional)
• Autofocus function on different projection distance
• Input and output signal through 3p and 5p XLR connectors
• RDM ready to set DMX Address, Display Flip, X/Y Reverse and more settings
• RDM monitors Voltage, Current, Power Consumption Of Lamp
• Firmware Upgrade Via DMX
• Hibernation When Lost DMX For Preset Time
• Advanced diagnostic system for all PCBs, with thermal and fan rotation control
• «ENERGY SAVE” mode: 50% reduction of power consumption during blackout status
• Remote unit reset by DMX
• Lamp life timer
• Cooling: filtered forced ventilation with auto-change fan speed according to temperature
• Temperature indication of base, arm, head

Structure and moving body

• Aluminum structure with hi-resistance polycarbonate cover, black color
• Ergonomic side handles for transportation
• Motion Angle: Pan = 630° (2,4 sec)  Tilt = 265° (1,0 sec)
• Pan/Tilt resolution: 8-bit or 16-bit Pan = 2,47°   Pan Fine = 0,0096° Tilt = 1,039°   Tilt Fine = 0,004°
• Feedback automatic repositioning
• Suspension and fixing: any possible working position through omega kit (included) with “quick lock” system

Power supply

• Electronic ballast: 100-240V 50/60Hz universal power supply
• Connections: PowerCON IN/OUT
• Power output allowing up to 8 units to be connected on a single power line (at 230V)
• Power consumption: 210W

Weight and dimensions

• Weight: 13 kg
• Dimensions (WxHxD): 338x472x235 mm
