| Keyboard, Bass & Bellows |
| Right Hand: |
37 keys piano type, velocity sensitive (F~F)
76 velocity-sensitive buttons |
| Left Hand |
Piano and button type: 96 velocity-sensitive bass buttons
Standard, Free Bass mode, Orch. Bass, Orch. Chord, Orch. Free Bass |
| Treble Mode (only B46 button type) |
System 1 Europe: C Griff Europe, C Griff Fin, D Griff 1, User 1~4, System 2 Bajan: B Griff Bajan, C Griff 2, D Griff 2, User 1~4 |
| Bass & Chord Modes |
2 Bs Rows, 3 Bs Rows A-7th, 3 Bs Rows A-5dim, 3 Bs Rows B-7th, 3 Bs Rows B-5dim, 3 Bs Rows Bx-7th, 3 Bs Rows Belgium 1, 3 Bs Rows Belgium 2, User 1~4 |
| Free Bass Modes |
Minor 3rd, Bajan, Fifth, North Europe, Finnish, Belgium1, Belgium2, Kravtsov, Moschino1, Moschino2, User 1~4 |
| Bellows |
Natural Air Flow System combined with Advanced “Dynamic Bellows Behavior” technology to manage the behavior of the bellows |
| Bellows curves |
Standard, Light, Heavy, Fixed Low, Fixed Med, Fixed High |
| Sound Source |
| Max polyphony |
256-voice polyphony |
| Accordion Types |
32 Accordion Types, each including:
– Right-hand registers: 14 Accordion registers (7×2), 14 Orchestra1 registers (7×2), 14 Orchestra2 registers (7×2)
– Left-hand registers: 10 Bass & Chord registers (5×2), 10 Free Bass registers (5×2), 10 Orchestra Bass registers (5×2), 10 Orchestra Chord registers (5×2), 10 Orchestra Free Bass registers (5×2), 9 Drum Sets |
| Reed Footages |
7x Accordion, 5x Bass & Chord, 5x Free Bass |
| Reed Detune |
Micro-tuning, programmable for each reed of every register |
| Waveform Expansion |
600MB, dynamic internal area for loading new sounds |
| Orchestral Sounds |
| Right Hand |
109 for Orchestra 1 and 2: 14 (7×2) selectable in real time, the others selectable via the Menu, 109 Harmony sounds |
| Left Hand |
109 for Orchestral Bass, Orchestral Chord, Orchestral Free Bass and Orchestral Free Bass Chord: 10 selectable in real time, the others selectable via the Menu |
| Drum Sets |
9 Drum Sets |
| User Programs |
| Song- or genre-specific settigs |
140 memories, 10 User Program banks x 14 registers (7×2) |
| Effects |
| Reverb, Chorus |
Reverb: 8 types, Chorus: 8 types |
| MFX 1 & 2 |
32 multi-effects for Orchestra 1 and Orchestra 2 (separate processors) |
| Equalizer |
4-band EQ for internal speakers, 4-band EQ for Output Left & Right |
| Cassotto Simulation |
Programmable for each reed |
| Operational Modes |
| Right-hand keyboard modes |
Layer, Zone, High, Low |
| Accordion Chord Voicing |
3 types: Accordion, 3-5, 1-5 |
| Orchestra Chord Voicing |
10 types: Mode1, Mode2, Mode3, Mode 4, Mode 5, Mode1-2, Mode1-3, Mode2-3, Cycle, Random |
| Harmony Function |
4 combinations: Simple, Chord, Octave Up, Octave Down |
| Bass&Chord with Percussion |
Programmable drum/percussion sounds for Bass/Orch Bass: 2 rows, Chord/Orchestra Chord: 4 rows |
| Audio Player and Audio Recording |
WAV file playback from a micro-SD card, WAV file recording to an SD card |
| Others |

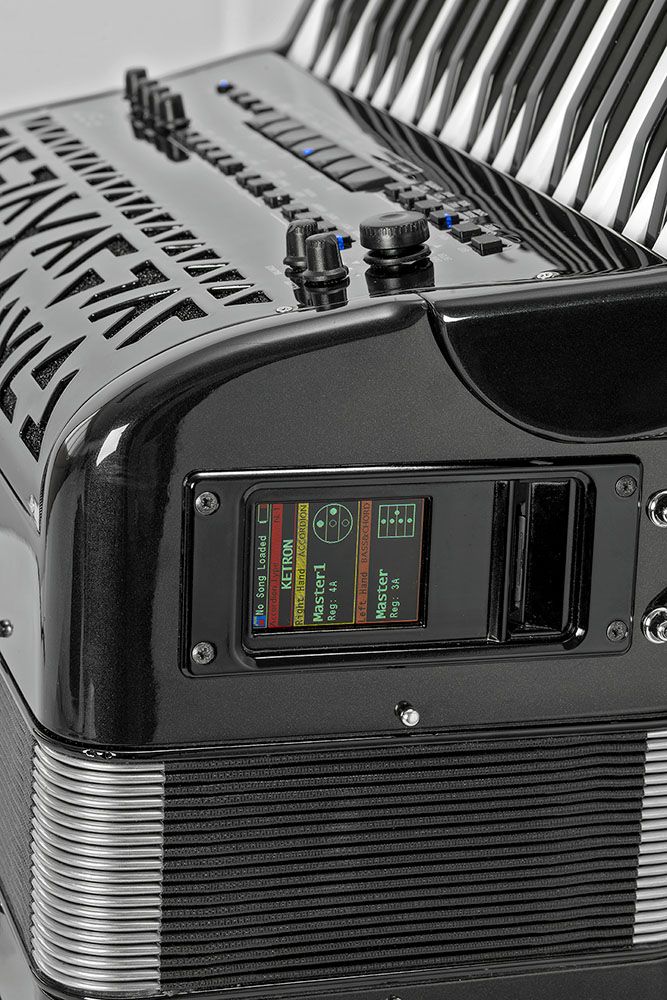

| Display |
Colour TFT LCD, 2.2”, 240 x 320 pixels |
| Rated Power Output / Speakers |
2 x 20 W / 2x 8 cm (full-range) |
| Power supply |
AC adaptor Input 100~240V, 1.5A, 50~60Hz, Output 12.6V= 3A, Rechargeable Li-ion battery pack (7.4V-10000mAh)
Expected battery life under continuous use: 9 hours (speakers on), 12 hours (speakers off) |

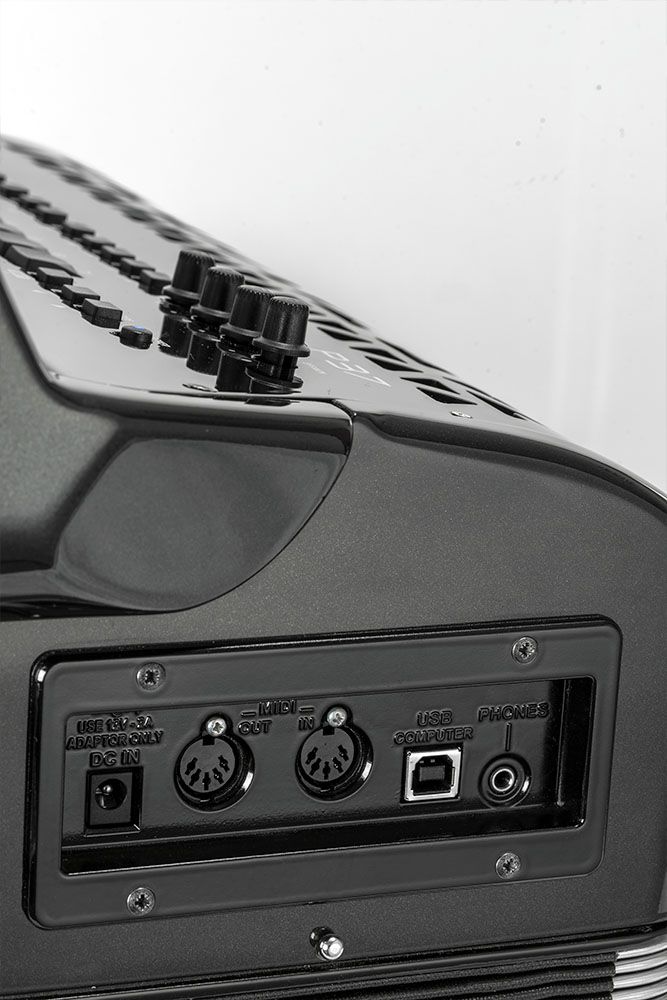

| Onboard connectors |
OUTPUT jacks L/Mono (Treble), R/Mono (Bass): 1/4” phone type, PHONES jack: 3.5 mm stereo miniature phone type, MIDI IN and MIDI OUT connectors SD card port, USB COMPUTER port (USB Hi-Speed MIDI support), DC IN jack |
| Dimensions and Weight |
| Dimensions |
Piano type: 460 (W) x 260 (D) x 435 (H) mm, Button type: 400 (W) x 250 (D) x 415 (H) mm |
| Weight (excluding strap, AC adaptor) |
Piano type: 9 kg (including battery), Button type: 8.5 kg (including battery) |
