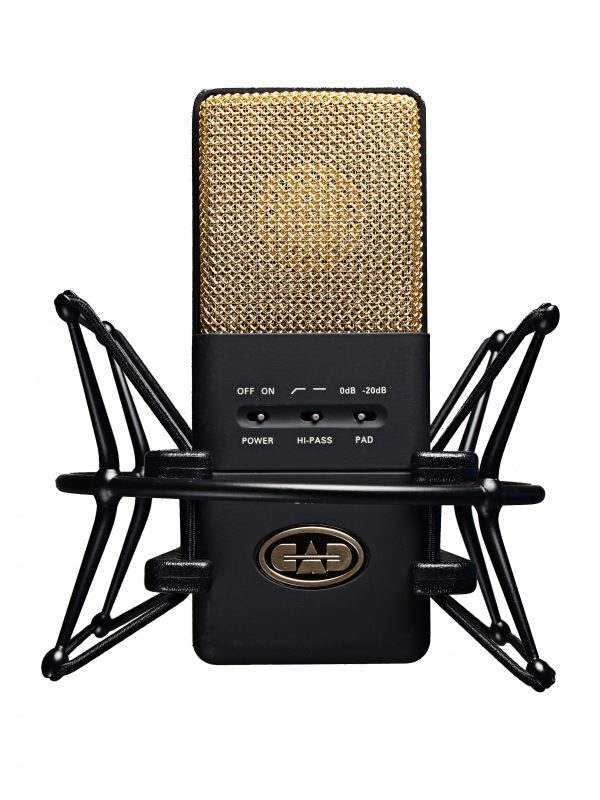

Engineered and built in the USA, the new E100S large diaphragm supercardioid condenser has the lowest noise floor in its class (3.7 dBA) and the smooth, vintage tone and robust low end CAD is known for. The bootstrapped, full differential Quadra-FET ™ front end delivers high sensitivity and low distortion, plus CAD’s proprietary circuitry ensures the highest performance. The nickel plated 1 inch capsule delivers accurate phasing on instruments, and a full rich vocal tone, accentuated by the extended low frequency response. Features include an 80Hz hi-pass filter and a 10dB pad. From vocals to percussion, acoustic instruments and everything in between, the CAD Equitek E100S will prove to be one of the most versatile tools in your microphone locker, in the studio or on stage. Vintage woodgrain cherry case and stealth shock mount included. 48V Phantom power is required.

Applications

Studio Vocals, Choir, Acoustic Instrument, Guitar Cabinets, Bass Cabinets, Strings, Piano, Cymbals/Overheads.

equitek E100S Specifications

Operating Principle: Condenser
Polar Pattern; Supercardioid
Frequency Response < 40Hz – 18KHz
Sensitivity: -30dBV (28mV) @ 1Pa
Impedance: 150 ohms
Max SPL: 150dB (Pad Engaged)
Self Noise: 3.7 dBA (best in class)
Hi-Pass: 80Hz Attenuator: 10dB
Power requirements: P48
Specifications are subject to change without notice.
