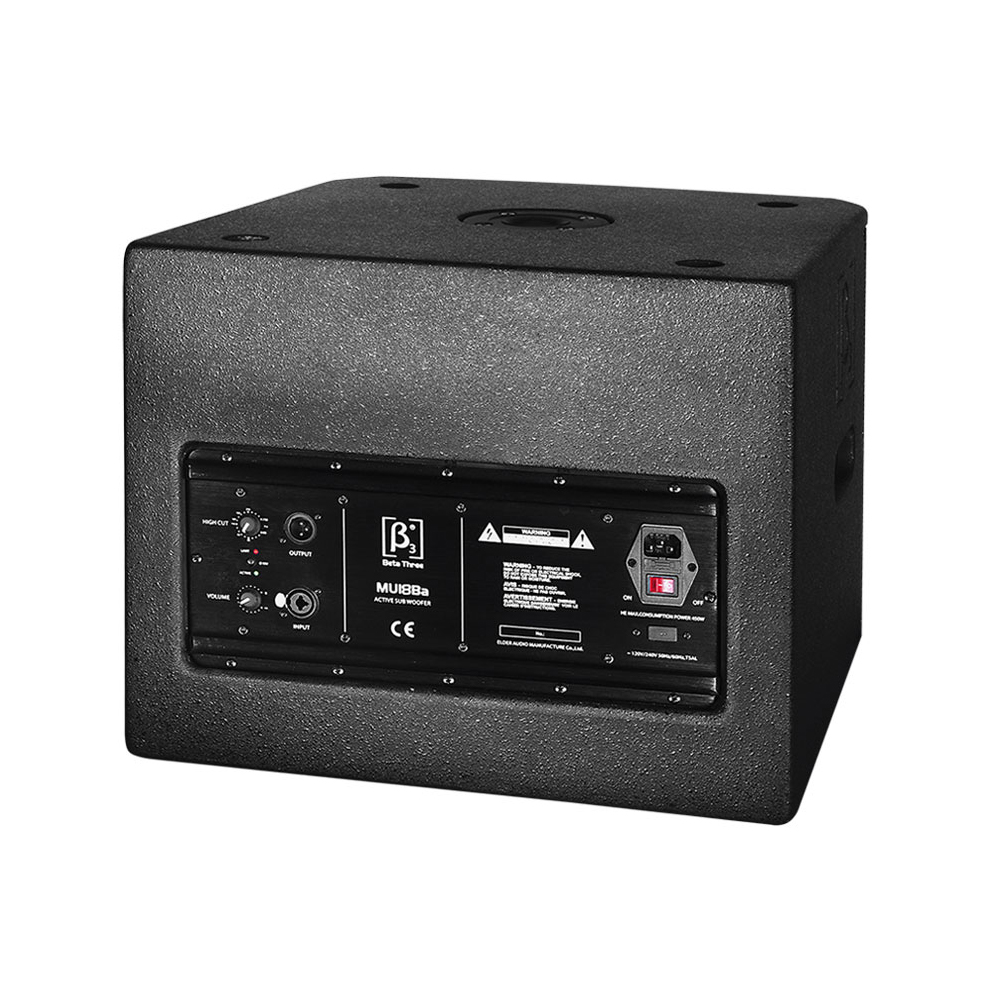

18″ aktiv Subwwofer med innebygget justerbart aktiv delefilter. Passer perfekt til MU12a, MU15A, U12A, U15A m.fl. Maks lydtrykk (SPL) 130dB.
Key Features and Benefits:
· High output SPL and sensitivity
· 1 x 18” high power low frequency transducer with 100mm voice coil
· Sensitivity 97dB, max SPL 124dB
· RMS 500W, peak 2000W
· Built-in power amplifier module
· Master volume control
· XLR input and output connectors
· Built in variable crossover 80Hz-250Hz high cut
· Phase switch
· Computer aided design to optimise frequency and phase response
· Cabinet designed for FOH use
· Suitable for use with any full range or mid/high speaker cabinets for extended low frequency, high quality music reproduction
· Integral 35mm pole receptacle for mounting full range or mid/high speaker cabinet
· Powder coated grill with foam backing
· Durable Polyurethane textured base paint
Cabinet Dimension:
|
System Specifications: |
|
|
Construction |
18mm Birch Plywood |
|
Transducers |
1 x 18” LF |
|
Frequency response（-3dB） |
40Hz-300Hz |
|
Rated power |
500W (RMS), 1000W (Program), 2000W (peak) |
|
Sensitivity (1W @ 1m) |
97dB |
|
Maximum SPL (1W @ 1m) |
124dB/130dB (peak) |
|
Rated Impedance |
8ohms |
|
Connector |
1 x Combo 6.35/XLR Input, 1 x XLR Output |
|
Power Supply |
110V/220V |
|
Dimensions (W×H×D) |
600mm (23.6”) x 640mm (25.2”) x 550mm (21.7”) |
|
Packaging Dimensions (W×H×D) |
750mm (29.5”) x 710mm (28”) x 670mm (26.4”) |
|
Net Weight(1 piece/pack) |
38kg(83.6lb) |
|
Gross Weight(1 piece/pack) |
44kg(96.8lb) |
